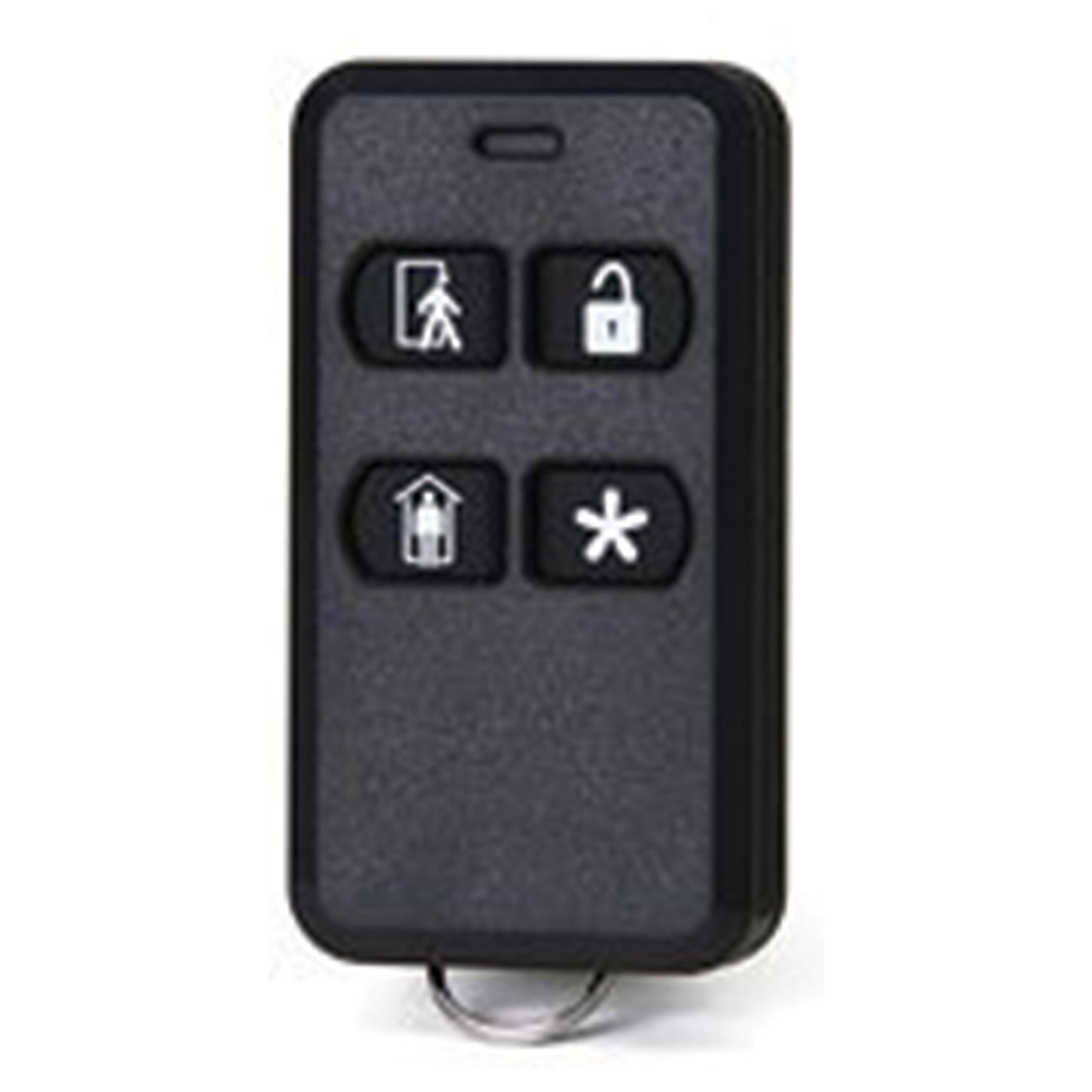

2GIG 4-Button Keyfob Remote (KEY2-345)

2GIG 4-Button Keyfob Remote (KEY2-345)

The 2GIG 4‐Button Keyfob Remote (2GIG‐KEY2‐345) communicates with the 2GIG Control Panel on the 345 MHz frequency. It gives users the ability to turn the security system ON and OFF before entering the home or after exiting. If there is an emergency, you can turn on the siren and automatically call the central monitoring station.

Keyfobs can be programmed to operate the programmable output in the Control Panel. Use with the 2GIG Universal Garage Door Receiver (2GIG‐GDR1‐345) to open a garage door. The keyfob is a lithium coin battery‐powered, wireless keyfob designed to fit on a key chain, in a pocket, or in a purse.

Benefits

• Arms system in STAY or AWAY mode
• Disarms system
• Auxiliary output and emergency functions

Main Features

• Includes: (1) Four-Button Keyfob Remote, (1) Key Ring, (1) Lithium Coin Battery
• Lithium coin battery with 5 years life
• Trigger panic alarms
• Turn system‐controlled lights on or off (via the open collector output)
• Use with the 2GIG‐GDR1‐345 to open a garage door
• Wireless Signal Range 350 ft (106.7 m), open air, with Wireless Control Panel
• Code Outputs: Arm; Disarm; Panic; Relay Control
• Transmitter Frequency: 345.00 MHz (crystal controlled)
• Unique ID Codes: Over one (1) million different code combinations
• Supervisory: Interval 70 minutes
• Dimensions: (L x W x H) 1.23 x2.26 x 0.45 in. (3.12 x 5.74 x 1.14 cm) typical
• Weight: (including battery) 0.65 oz. (18.4 g)
• Housing Material: ABS Plastic
• Color: Black
• Operating Temperature: 32°‐120° F (0°‐49° C)
• Relative Humidity: 5‐90% Non‐Condensing
• Battery: (installed) One (1) CR 2025 3V or equivalent Lithium coin battery
• Certification: Anatel, ETL, FCC, IC, IFETEL, and NOM
