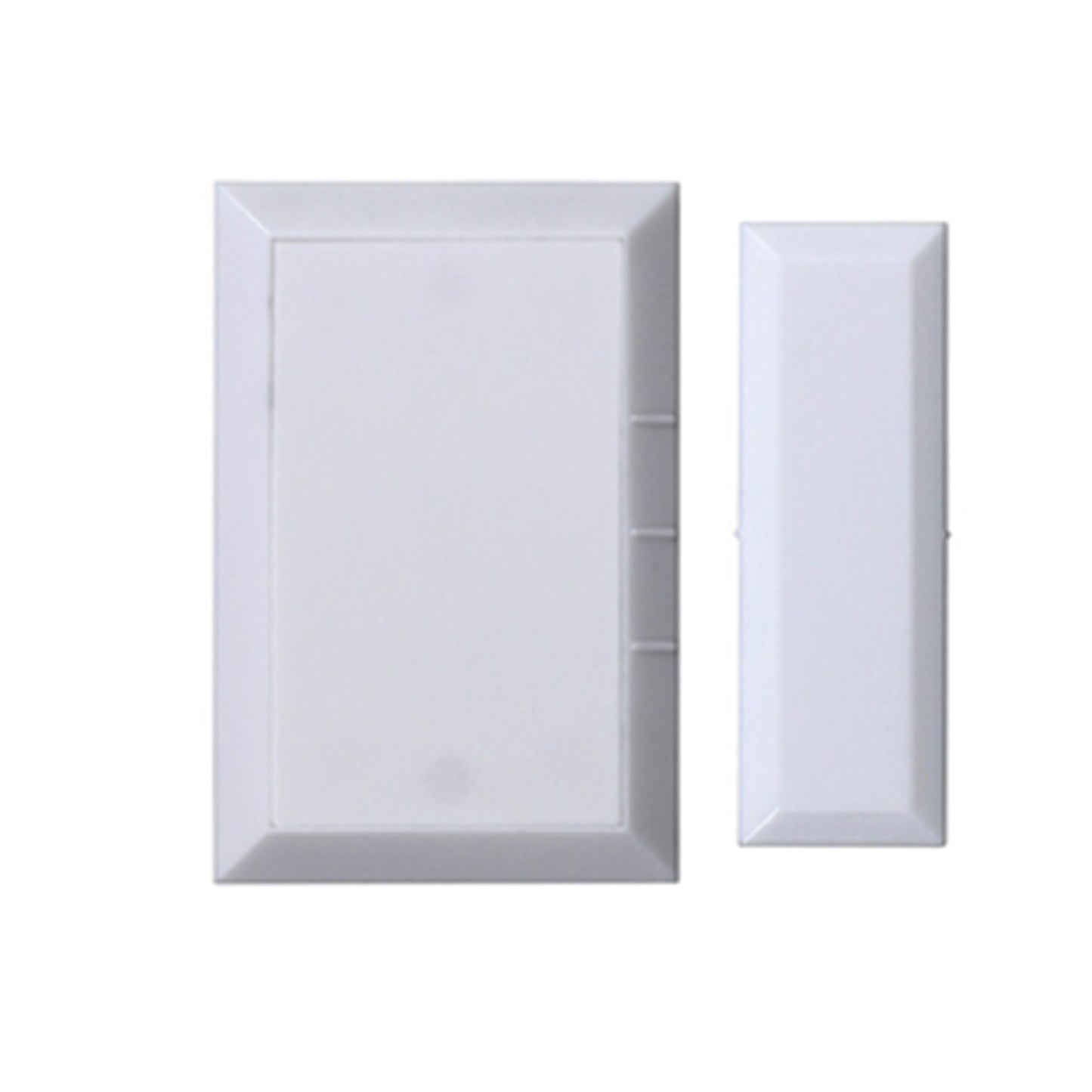

2GIG Bypass Door/Window Sensor (DW40-345)

2GIG Bypass Door/Window Sensor (DW40-345)

Regular price $12.71
Regular price $18.99 Sale price $12.71
Sale Sold out

2GIG Bypass Door/Window Sensor (DW40-345)

Part Number: 2GIG-DW40-345

  • NEW 2GIG Bypass Door/Window Sensor (2GIG-DW40-345)
  • This micro-sized door/window contact gives you the ability to set a temporary bypass on a zone at the push of a button, rather requiring you to disarm and then re-arm the security system.
  • After pressing and holding the integrated bypass button the sensor will remain bypassed until the contact closes again.
  • This features works with any version of the 2GIG GC2 Panel.
  • For GC2 Panels running firmware version 1.14, bypass events are also logged in the System History.


  • Bypass locally with integrated button
  • Bypass events logged in System History (requires firmware version 1.14)
  • Low-profile micro contact (1.5 x 1.0 x 0.4 in)
  • 345 MHz frequency


  • Wireless Signal Range: 275 ft (80 m) open-air with Wireless Control Panel
  • Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery; Tamper; Tamper Restore; Local Bypass Enabled*; Local Bypass Disabled*
  • Transmitter Frequency: 345 MHz (crystal controlled)
  • Supervisory Interval: 70 minutes
  • Bypass State LED: Red LED
  • Button: Local Bypass Button • Magnet: 5/8” max. gap
  • Sensor Dimensions (D x H): 1.5 x 1.0 x 0.4 in (3.7 x 2.5 x 0.8 cm)
  • Weight (including battery and magnet): 0.6 oz (15 g)
  • Housing Material: ABS Plastic
  • Color: White
  • Operating Temperature: 32° - 120° F (0° - 49° C)
  • Humidity: 5-95% Non-Condensing
  • Compatibility: 2GIG Receivers
  • Battery (included): CR2032 battery or equivalent
  • Certification: FCC, IC
  • Code Output messages for these bypass events are logged in the System History on GC2 Panels running firmware version 1.14 or later
