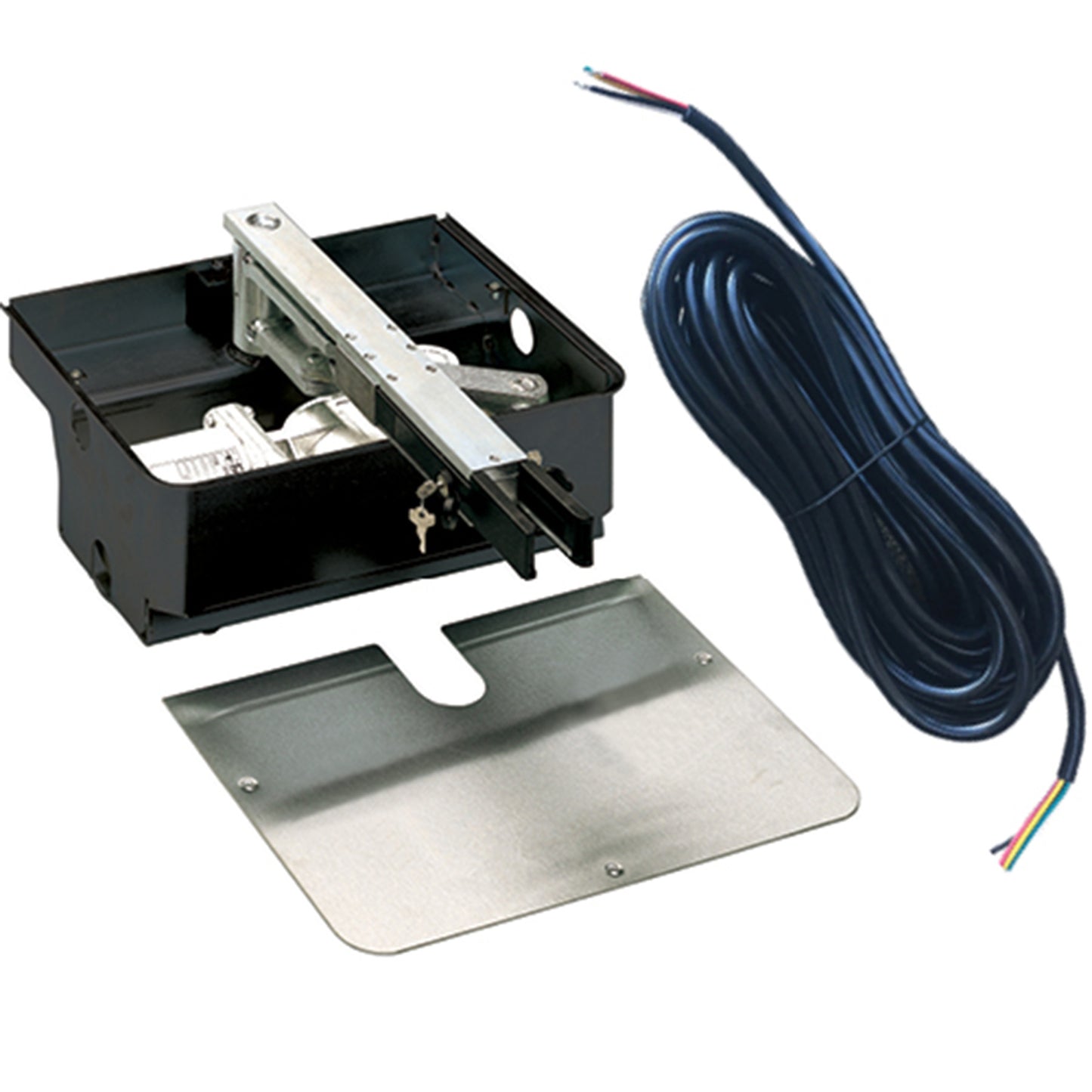

FAAC 770 In-Ground Swing Gate Opener Secondary Kit

FAAC 770 In-Ground Swing Gate Opener Secondary Kit

Part Number: 10675315.5

Imagine how awesome your driveway will look with an underground dual gate opener! The 770 gate operator was designed for in-ground installation to avoid detracting from the gate's appearance. Use this operator to turn the single kit into a master/secondary (bi-parting) kit. Opens and closes swing gates up to 10 ft long and 1,110 lbs.

Kit Includes:

• (1) Operator 770
• (1) Support Box
• (1) Junction Box For Electrical Connections
• (1) 40' AWG 12 - 2 Conductors Cable (Operator)

Features:

• Invisible installation
• Access the operator without removing the leaf
• Protection class IP 67
• Non reversible desing
• Optional 140 ° and 180 ° opening kits
• Maximum safety thanks to the E024U control board reverse on contact feature
• Built in battery backup to ensure operation in case of power outage
• UL325 Listed

Technical Specs:

• Input Voltage: 24 VDC
• Power: 70 W
• Current: 3 A
• Max Torque: 221 lbf.ft (300 Nm)
• Reduction Ratio: 1:1418
• Angular Speed: 6°/s
• Max Opening Angle: 110 ° (140 ° and 180 ° with optional kit)
• Leaf Max. Width: 10 ft (3 m)
• Leaf Max. Weight: 1100 lb (500 Kg)
• Operating Ambient Temperature: -4°F to 131°F (-20°C to +55°C)
• Use Frequency: Continuous
• Operator Dimensions (L x D x H): 14 x 6 x 5.5 in (360x150x140 mm)
• Support Box Dimensions (L x D x H): 17 x 12 x 8 in (430x307x214 mm)
• Protection Class: IP 67
