FAAC S418 Swing Gate Opener Kit

FAAC S418 Swing Gate Opener Kit

Part Number: 104301.5

The S418 electromechanical swing gate opener from FAAC was designed to provide power and versatility to residential swing gates. This basic low voltage single leaf kit handles gates up to 12 ft long and 500 lbs.

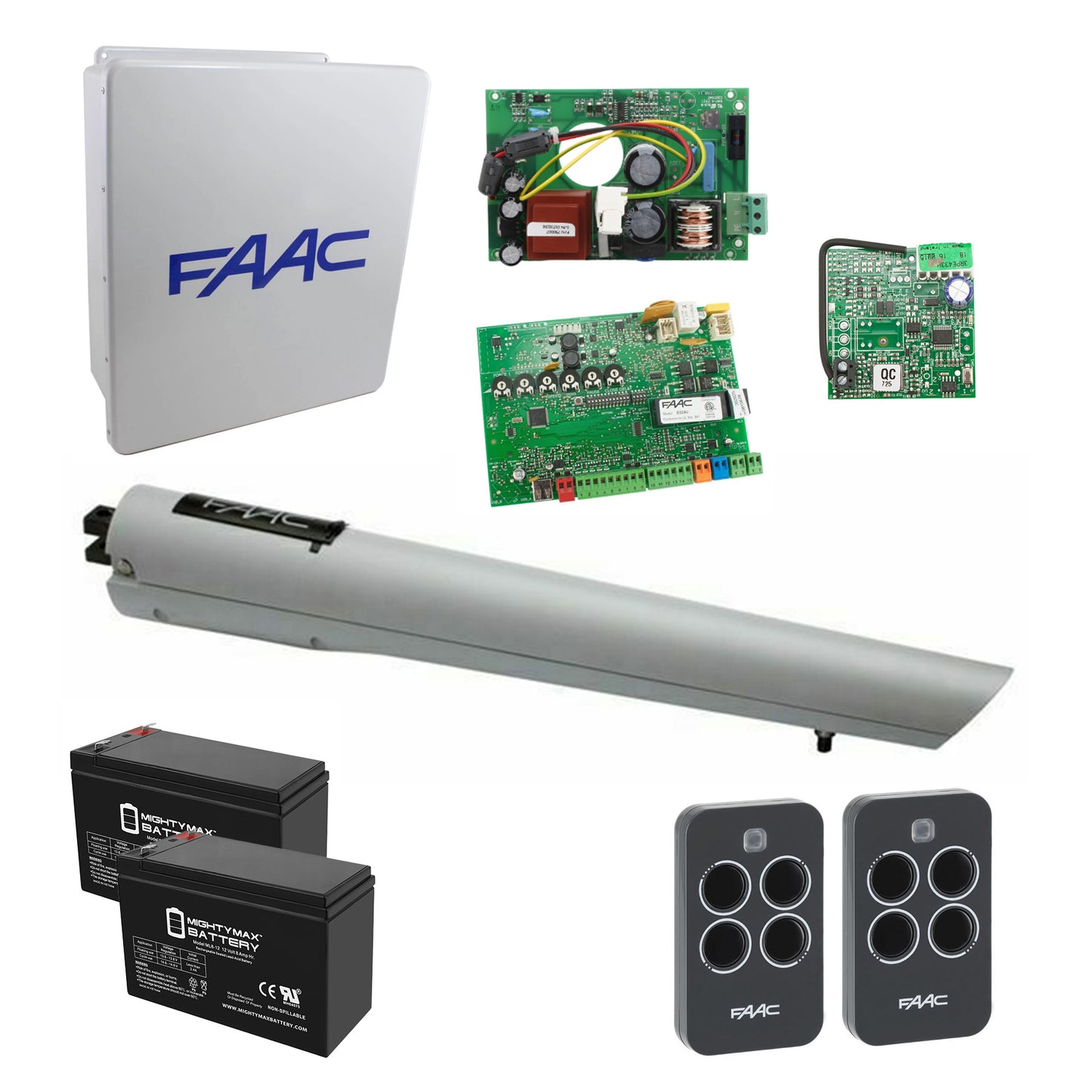

Kit Includes:

• (1) S418 Operator

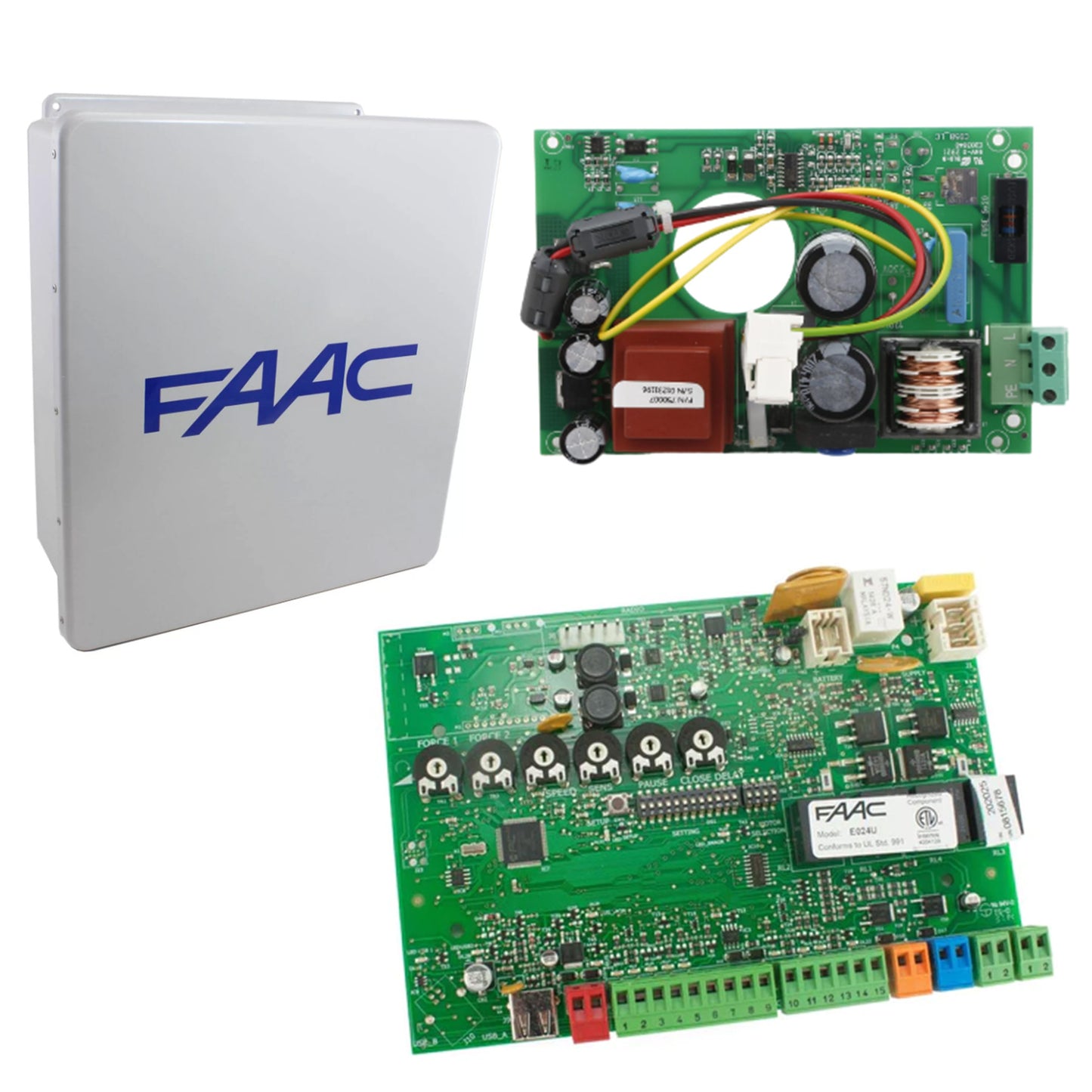

• (1) E024U Control Board
• (1) Power Supply
• (1) 16" x 14" Enclosure

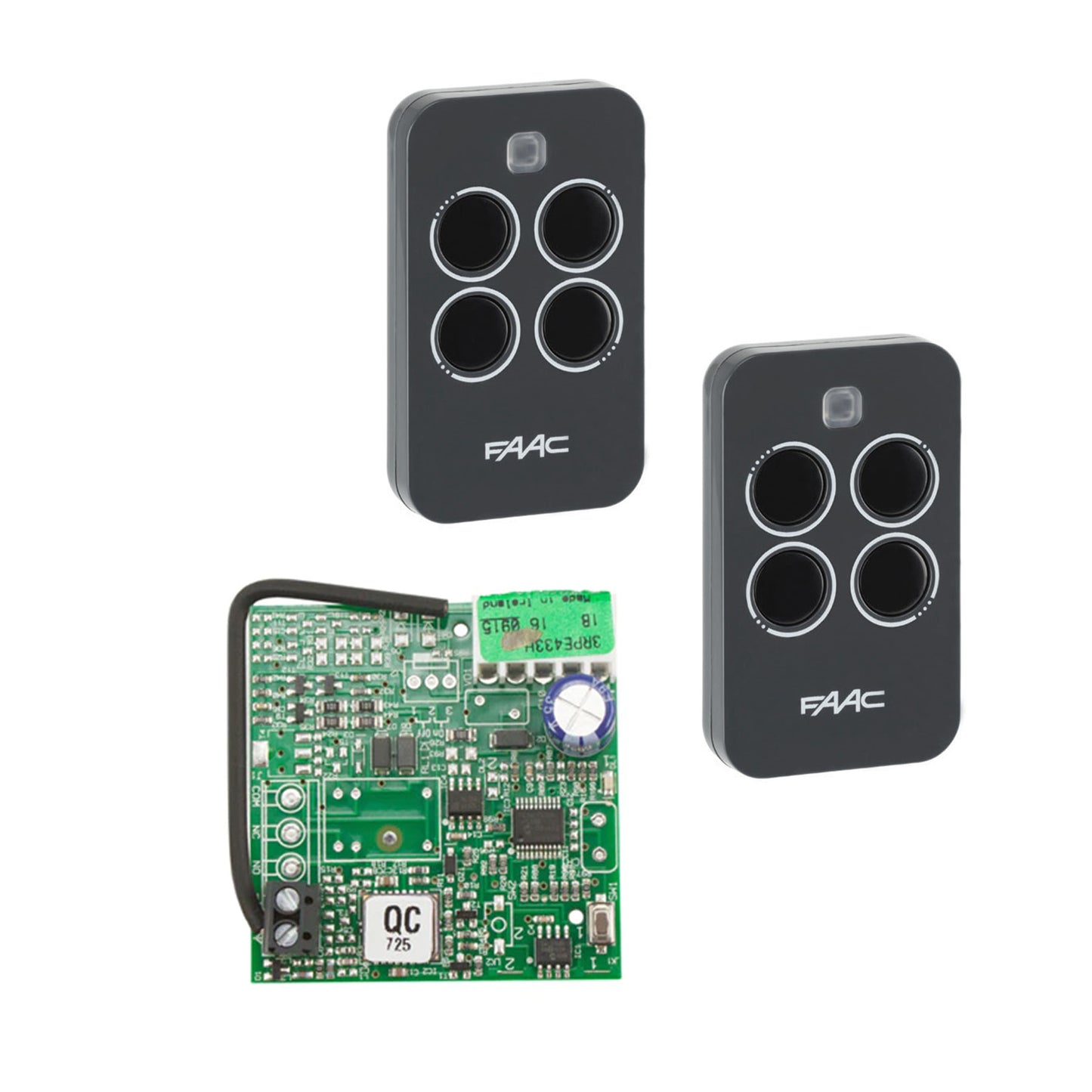

• (1) 433 RC Plug In Receiver
• (2) 4-Channel Transmitters
• (2) 12V 8 Ah Batteries

Features:

• Sleek design
• Built in opening and closing mechanical stops
• Effective stroke of 13.8" (350mm)
• Unique "multi-position" bracket for non-welded installation
• Maximum safety thanks to the E024U control board reverse on contact feature
• Built in battery backup to ensure operation in case of power outage
• UL325 Listed

Technical Specs:

• Input Voltage: 24 VDC
• Power: 35 W
• Current: 1.5 A
• Maximum Thrust: 404 lbf (180 daN)
• Rod Stroke: 13.8 in (350 mm)
• Rod Stroke Without Mechanical Stops: 15.3 in (390 mm)
• Rod Extension Speed: 0.7 in/s (1.8 cm/s)
• Leaf Max. Width: 12 ft (3.7 m)
• Leaf Max. Weight: 500 lb (227 Kg)
• Operating Ambient Temperature: -4°F to 131°F (-20°C to +55°C)
• Use Frequency: Continuous
• Dimensions (L x D x H): 32.5 x 4 x 4.9 in (825x104x125mm)
• Protection Class: IP 54

Batteries are for emergency back-up only and are not needed to run system under normal conditions.
