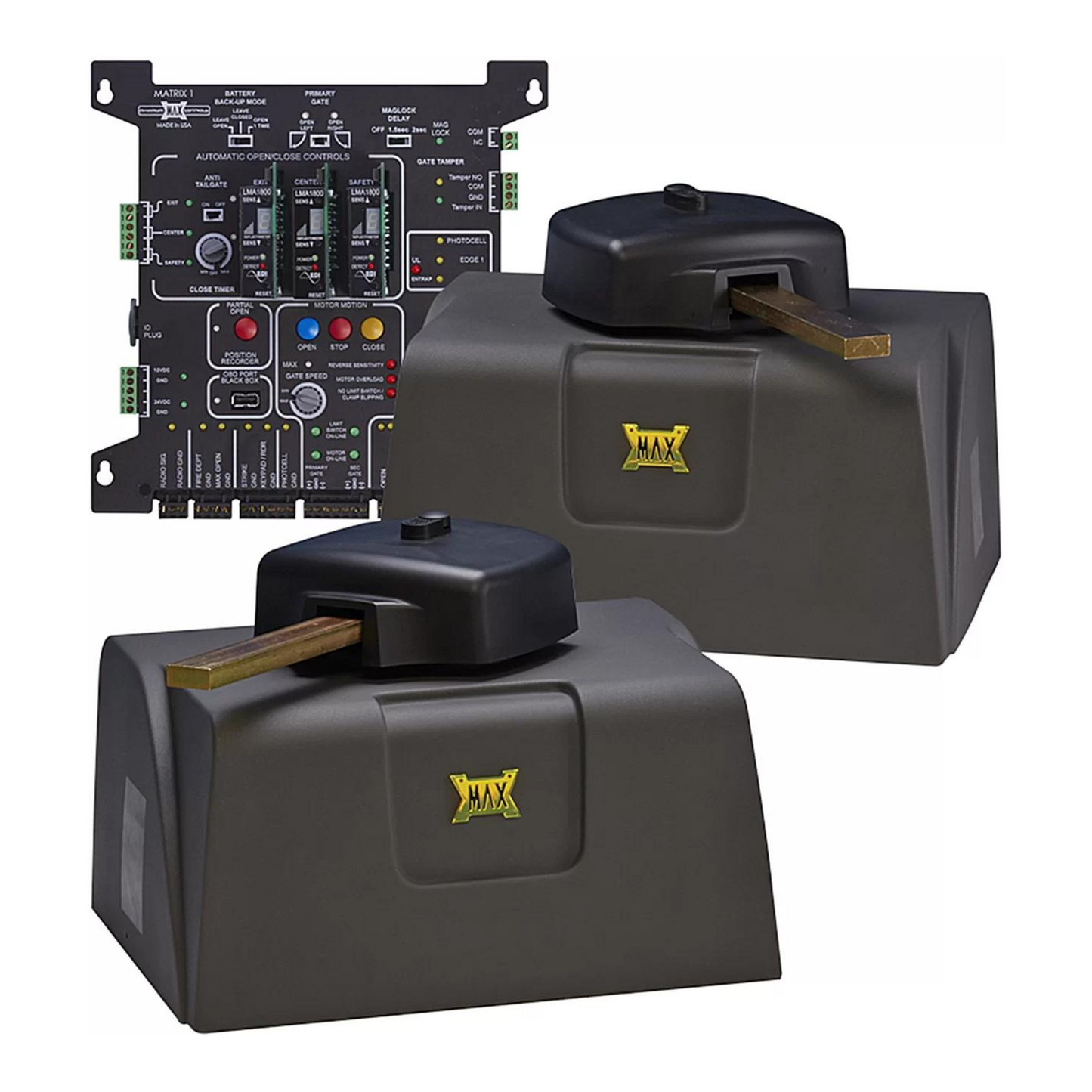

MAX Phantom F6 Dual Swing Gate Operator

MAX Phantom F6 Dual Swing Gate Operator


THE WORLD'S FIRST 6 SECONDS TO 90° BRUSHLESS DC DUAL SWING GATE OPERATOR PACKAGE
Lowest profile and fastest swing operator system in the industry.
This super fast, low profile gate operator duo measures an astonishing 15.5 inches to the top of their swing arm caps, making it the lowest profile gate operator system on the market. The Phantom F6 can be hidden behind shrubs or landscaping to help architects keep the focus off the operators and on the gates. The Phantom F6 dual swing gate operator package is also compatible with existing installations and in most cases can be directly bolted onto concrete pads used by the most popular gate operators in the industry.

• Lowest profile in the industry; 15.5″ high.
• Brushless DC motor = .5 HP AC motor.
• Gate capacity 1000 lbs./up to 15 ft gate.
• Intelligent ramp-up and ramp-down
  gate speed control for smooth operation.
• Large output shaft 3¼” solid steel
  with cast iron clamping system.
• Dual layer corrosion protection
  gold zinc and powder coating.
