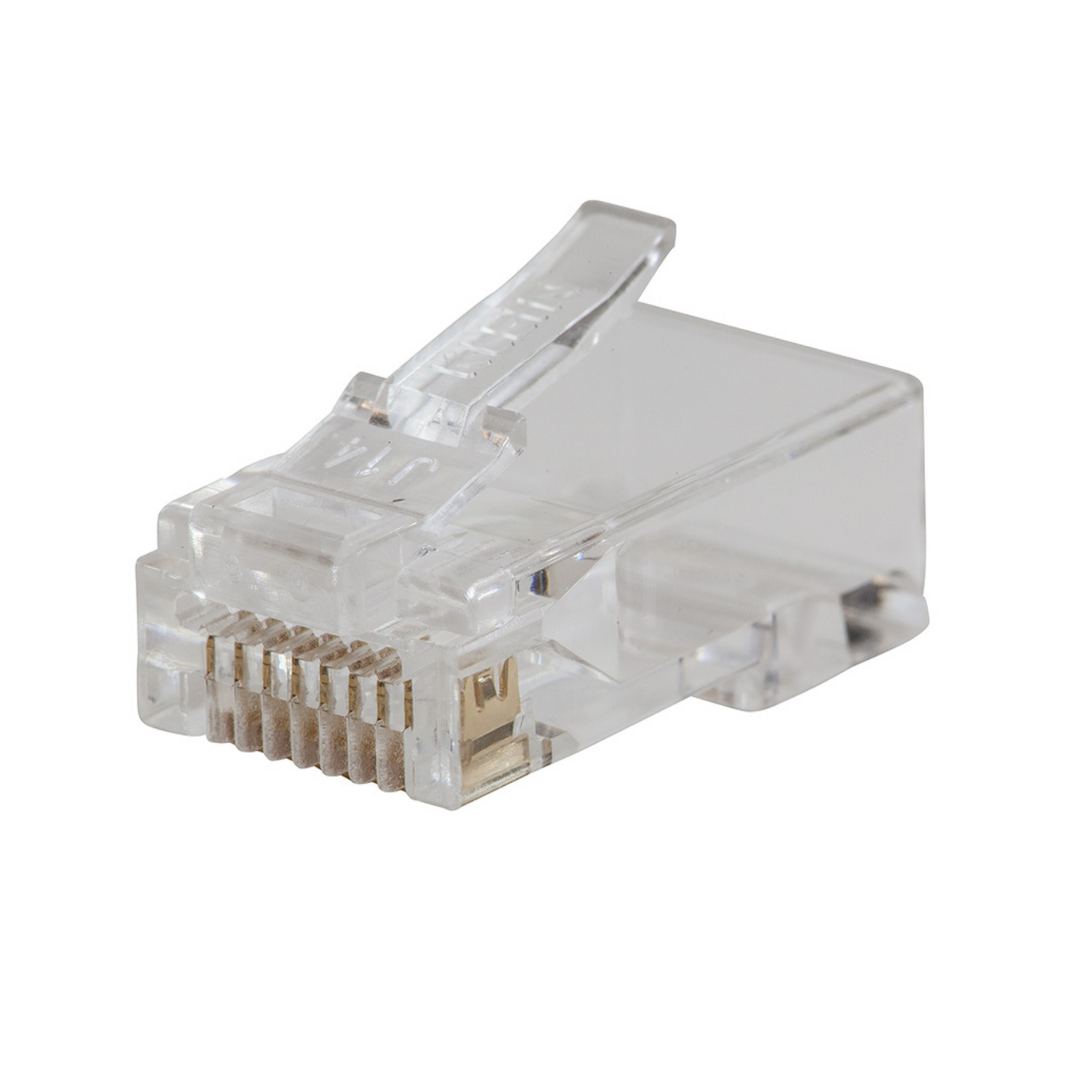

Pass-Thru™ Modular Data Plug, RJ45- CAT5E, 50-Pack

Klein Tools Pass-Thru™ Modular Data Plug, RJ45- CAT5E, 50-Pack

Part Number: KLN VDV826-702

Exclusive Klein-designed CAT5e Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials.

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

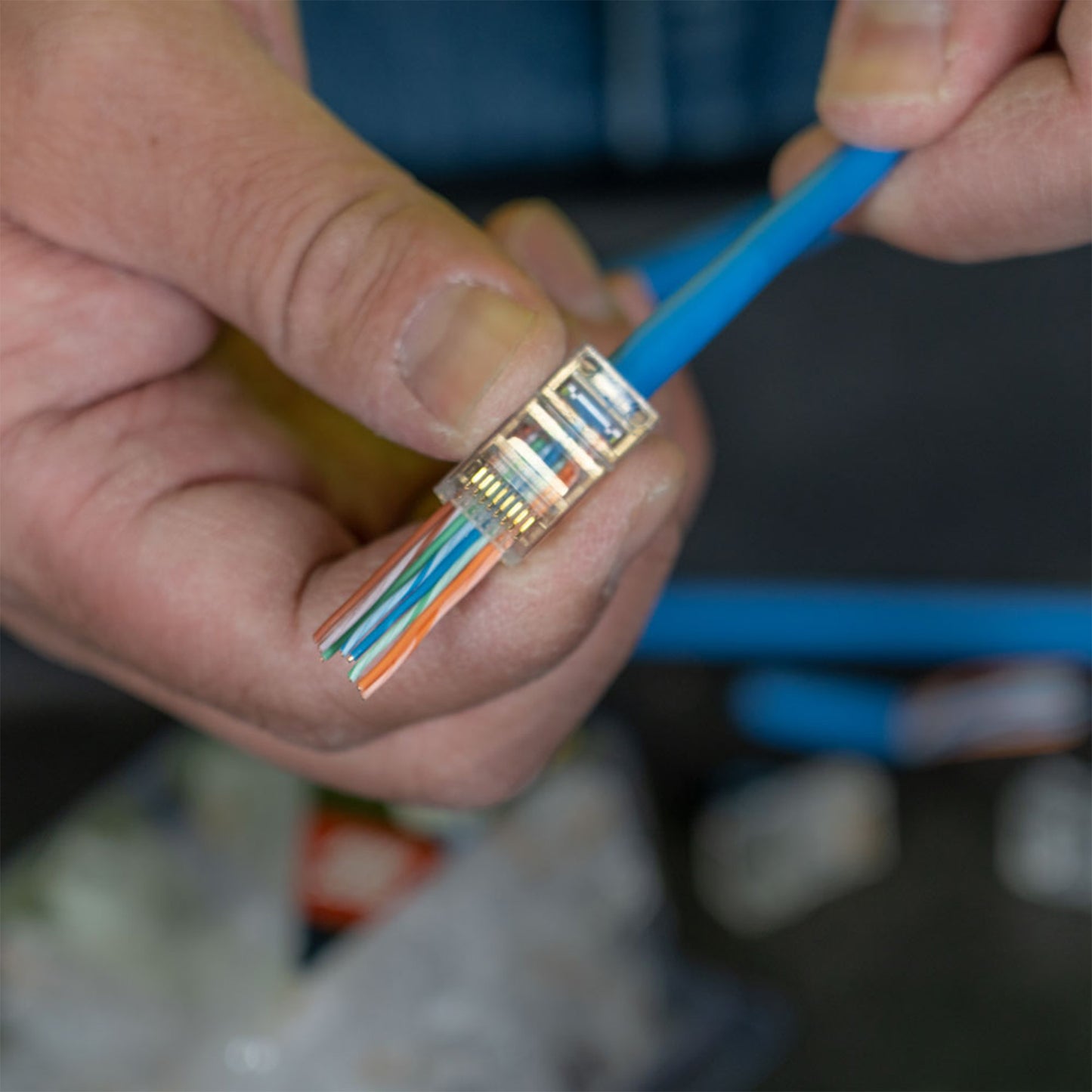

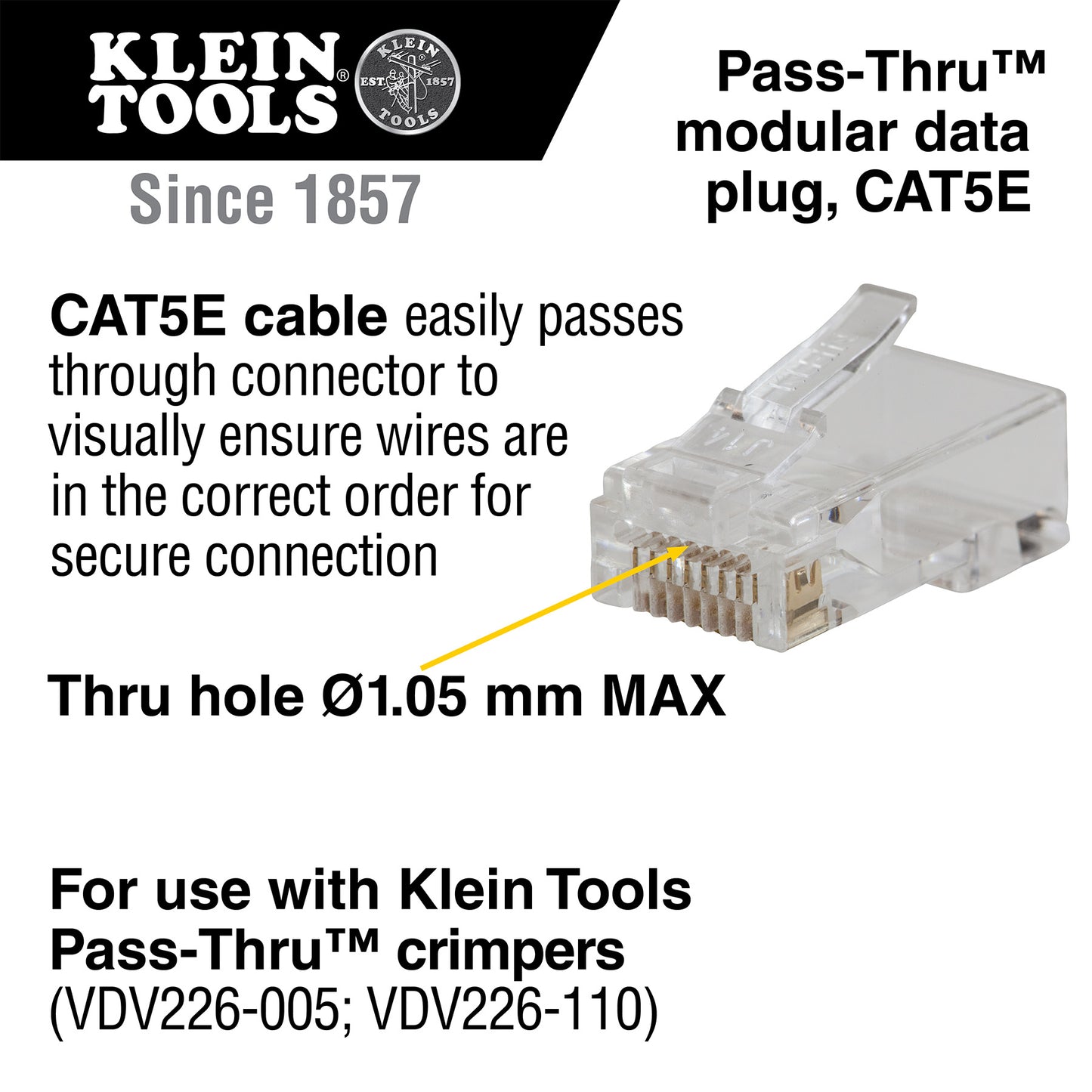

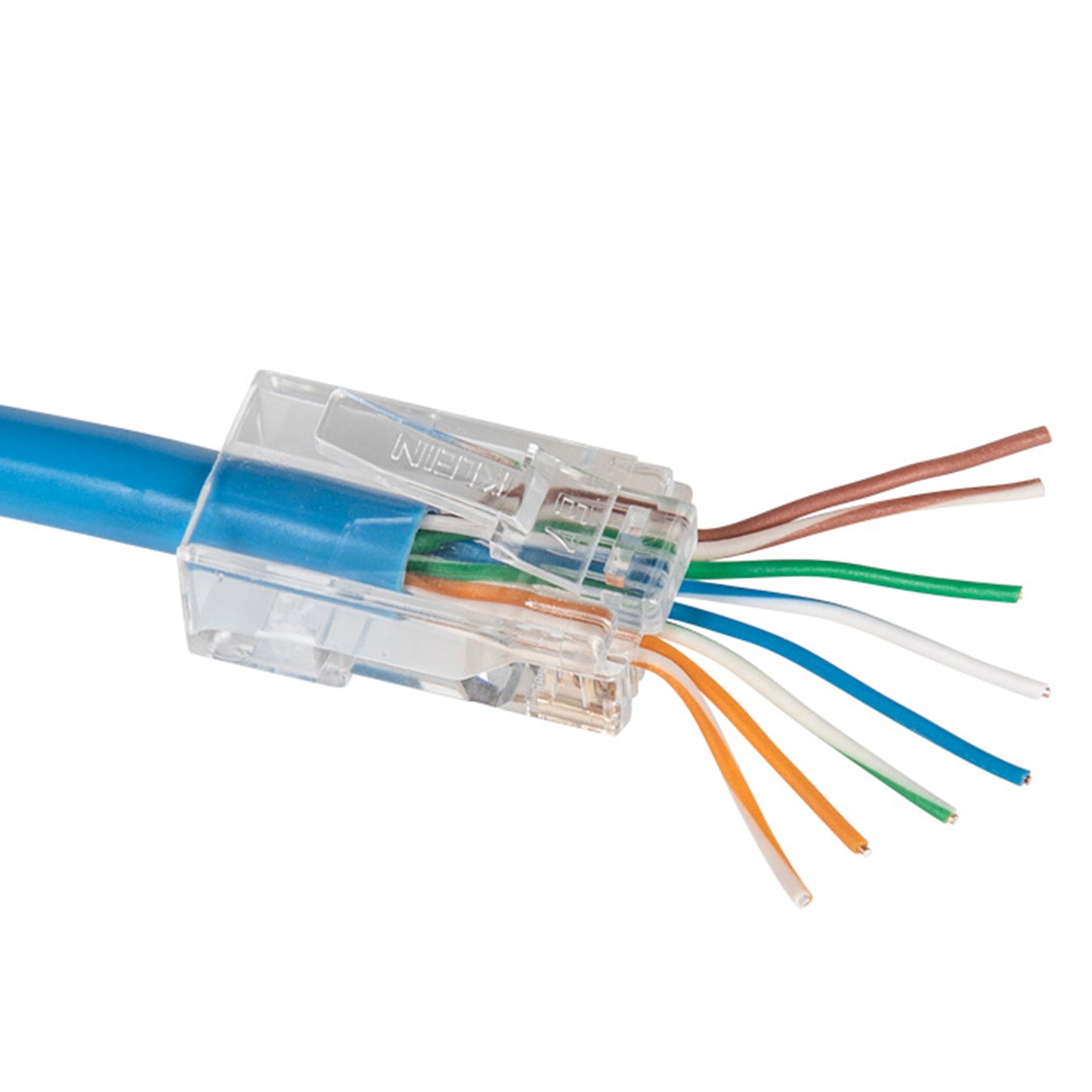

• CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 50 µ-inch minimum gold plating on all contact surfaces
• Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110

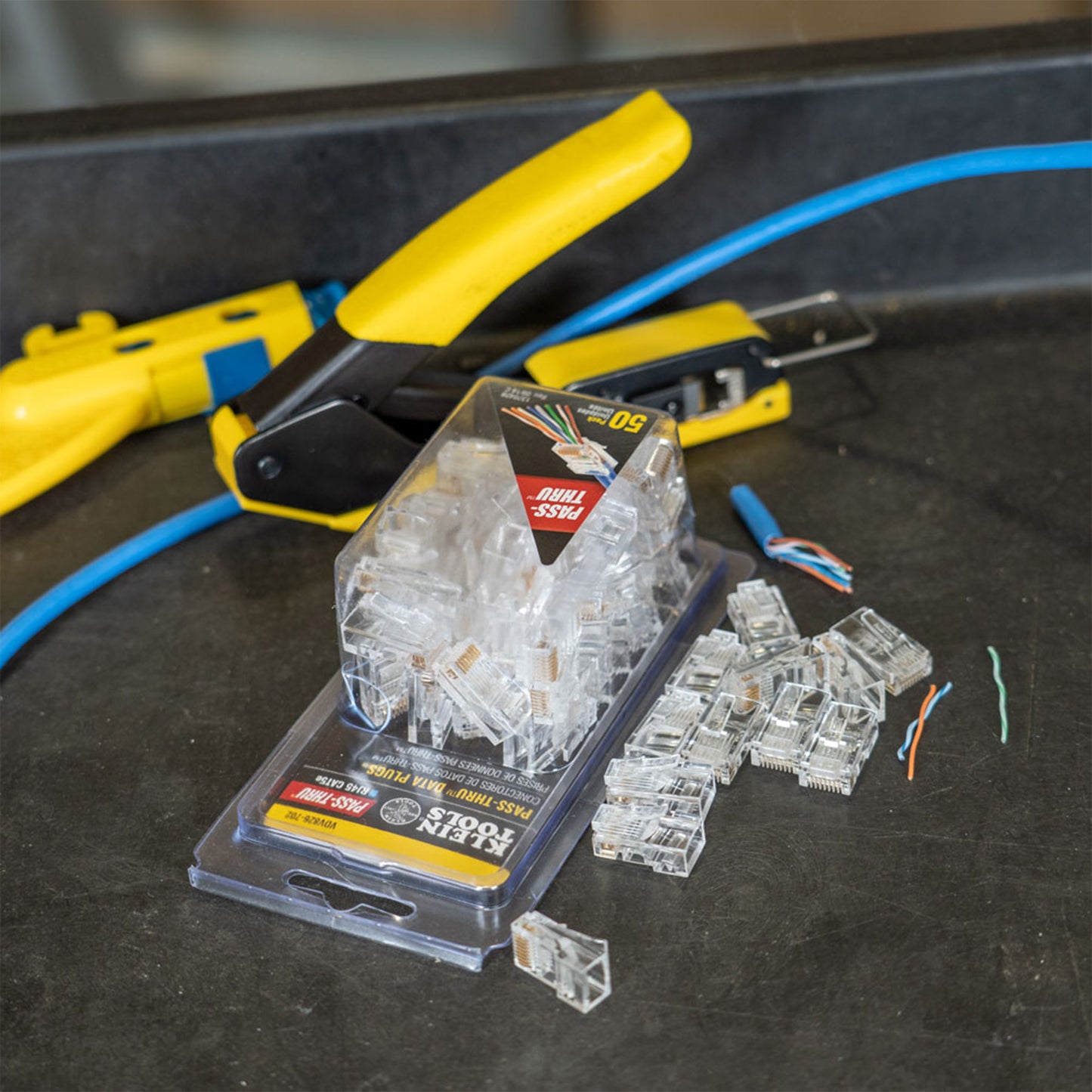

• 50-Pack
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable
• Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)

Specifications
